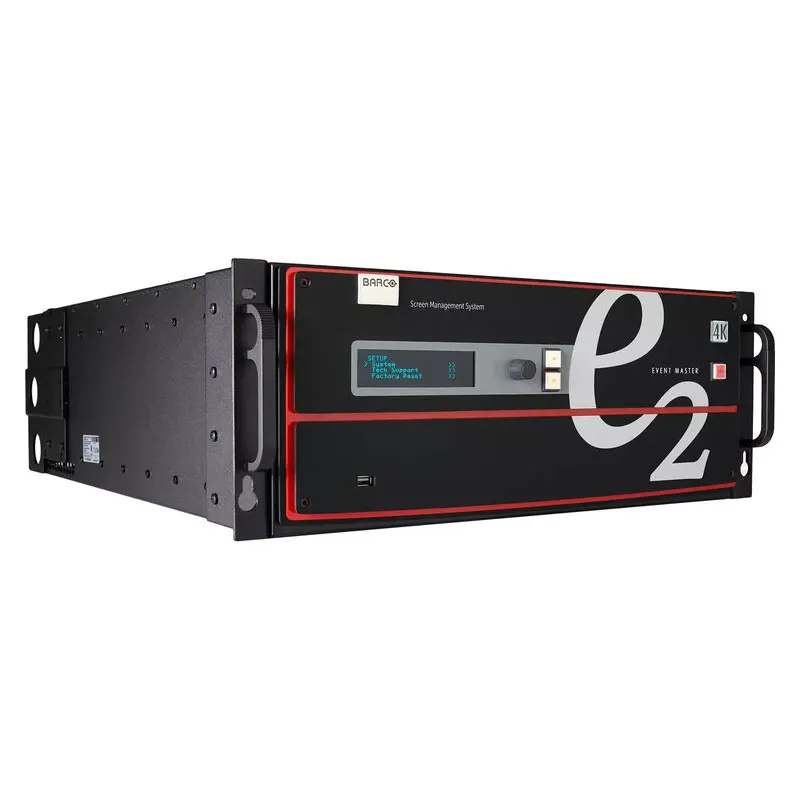

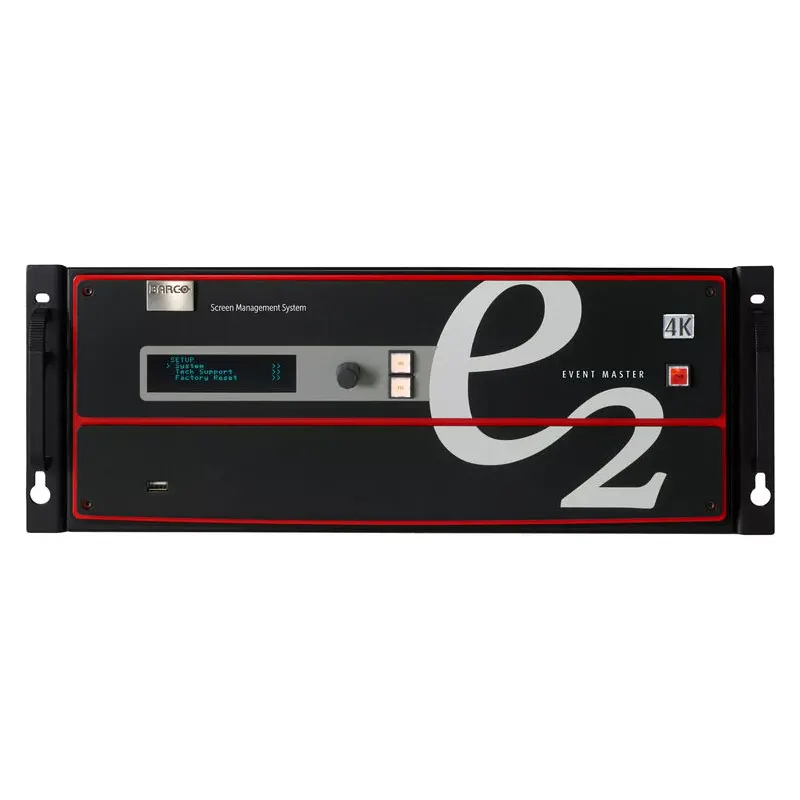

Barco E2 Gen 2 Configuration Switcher

Description

When a production involves multiple displays, high-resolution sources, LED walls, projection surfaces, confidence monitors, and live program feeds, ordinary switching equipment can quickly become a limitation. The larger and more ambitious the show becomes, the more important reliable screen management is.

The Barco E2 Gen 2 Configuration Switcher is designed for precisely these demanding production environments.

As an experienced AV rental and production company, we rely on professional video processing systems that allow our technical teams to manage complex visual workflows without compromising image quality, switching flexibility, or show reliability. The Barco E2 Gen 2 gives us the processing power and control required to build sophisticated video systems for corporate events, live productions, product launches, conferences, exhibitions, hybrid events, and large-format visual experiences.

We offer the Barco E2 Gen 2 for rental as part of a complete production solution. Rather than simply supplying a processor, our team can help configure, integrate, test, operate, and support the system according to the needs of your event.

Whether your production requires seamless presentation switching, multi-screen output management, LED wall processing, blended projection, picture-in-picture layouts, or a combination of several display technologies, the E2 Gen 2 provides a flexible foundation for delivering the show.

What Is the Barco E2 Gen 2 Configuration Switcher?

The Barco E2 Gen 2 is a high-performance presentation switcher and screen management system created for complex professional AV productions. It combines video scaling, signal conversion, source management, screen composition, switching, layering, and output processing within a modular rack-mounted chassis.

Unlike a basic video switcher that primarily changes between one source and another, the E2 Gen 2 can manage a much broader production environment. It can receive signals from numerous computers, media servers, cameras, presentation systems, and playback devices, then process and distribute those signals to different destinations.

These destinations may include:

• Large LED video walls
• Projection screens
• Blended projector systems
• Confidence monitors
• Stage displays
• Broadcast feeds
• Streaming encoders
• Recording systems
• Overflow room displays
• Digital signage screens
• Presenter preview monitors

The system supports up to 40 inputs and 18 output connectors, depending on its installed card configuration. It can accommodate as many as 16 4K inputs and up to eight 4K outputs, giving production teams substantial capacity for high-resolution workflows. el of connectivity makes the Barco E2 Gen 2 especially useful when a show must combine several source formats and display destinations while maintaining consistent timing, image quality, and operational control.

Why Rent a Barco E2 Gen 2 for Your Production?

Purchasing a professional screen management system is not always the most practical option. These processors require significant investment, compatible input and output cards, current software, specialist knowledge, transportation, maintenance, and careful configuration.

Renting the Barco E2 Gen 2 gives you access to a powerful production platform without the cost and responsibility of owning the equipment.

More importantly, rental allows the system to be configured around the specific requirements of your event.

A single-screen presentation has very different processing needs from a panoramic LED wall, a projection-mapped stage, or a multi-room conference. Our team evaluates the number and type of sources, display resolutions, screen layouts, signal paths, backup requirements, and operator workflow before recommending a suitable configuration.

More Than an Equipment Rental

A professional Barco E2 Gen 2 rental should not be treated like renting a simple HDMI switcher.

The equipment is only one part of the solution. Proper system engineering is equally important.

Our rental service can include:

• Pre-production consultation
• Video system design
• Input and output planning
• Resolution and refresh-rate coordination
• Event Master show-file preparation
• Screen destination programming
• Picture-in-picture layout creation
• Multiviewer configuration
• Signal-flow documentation
• Equipment testing
• On-site installation
• Technical operation
• Show-day support
• Backup planning
• System strike and removal

This approach helps reduce last-minute surprises and ensures that the switcher is integrated correctly with the rest of the production system.

A Configuration Designed Around the Show

The modular architecture of the E2 Gen 2 allows its input, output, and processing resources to be adapted to different production requirements. Compatible cards may provide SDI, HDMI, or DisplayPort connectivity, allowing the processor to work with a wide variety of professional and commercial video sources.

For rental productions, this modularity is extremely valuable. We can build a configuration that matches the actual signal environment rather than forcing the event to work around a fixed set of connections.

High-Capacity 4K Video Processing

Modern events increasingly use 4K content, high-resolution LED canvases, widescreen projection surfaces, and media servers that output unusually large raster sizes.

The Barco E2 Gen 2 is built to manage these workflows.

It supports native 4K input and output processing, including 4K signals at frame rates up to 60p. Barco’s system architecture also supports full 4:4:4 color sampling and 12-bit processing in applicable workflows, helping preserve detail and color quality throughout the signal chain. ability is particularly important for content such as:

• Detailed presentation graphics
• Small text and financial data
• Product demonstrations
• High-resolution branding
• Architectural visuals
• Medical or technical imagery
• Cinematic playback
• Large LED wall content
• Multi-camera productions
• Premium corporate presentations

When a high-resolution source is displayed across a large-format screen, scaling quality becomes highly visible. Weak processing can produce soft text, jagged edges, incorrect aspect ratios, color inconsistencies, or distracting motion artifacts.

The E2 Gen 2 is designed to handle scaling and compositing within a professional production environment where those problems are not acceptable.

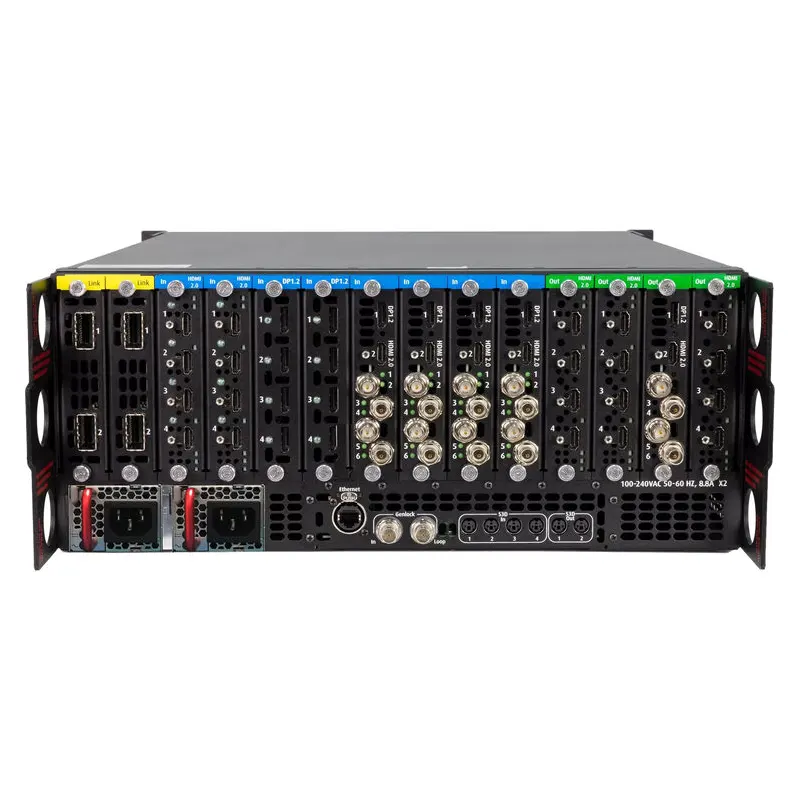

Flexible Input and Output Connectivity

One of the biggest challenges in event video production is managing equipment that does not use the same signal type.

A production may include presentation laptops connected through HDMI, media servers using DisplayPort, broadcast cameras using SDI, playback systems with 4K outputs, and streaming equipment requiring dedicated program feeds.

The Barco E2 Gen 2 can be equipped with Event Master input and output cards that support multiple professional formats. Depending on the installed configuration, the chassis may include connections for HDMI 2.0, DisplayPort 1.2, and SDI formats ranging through 12G-SDI. vides an adaptable bridge between source devices and display systems.

Managing Mixed Resolutions and Formats

Not every source in a production will use the same resolution, frame rate, or aspect ratio.

For example, a presentation system may output 1920 × 1080, while a media server delivers 3840 × 2160. Cameras may arrive through SDI, and the LED wall processor may require a custom output raster.

The E2 Gen 2 can scale and position these sources within the overall screen composition. This allows different content formats to coexist without requiring every device to generate an identical signal.

Our technicians plan these conversions carefully to maintain stable synchronization and avoid unnecessary processing stages.

Advanced Layer Management for Creative Screen Layouts

A major advantage of the Barco E2 Gen 2 is its flexible layer management.

The processor can provide up to 32 scalable HD layers or up to 16 mixable layers, depending on the selected operating configuration. These resources can be distributed across program outputs and arranged to support a combination of HD and 4K content. ical terms, layers allow multiple sources to appear on screen at the same time.

A corporate presentation might display:

• A keynote presentation as the primary image
• A live camera feed in a smaller window
• A branded background
• A lower-third graphic
• A remote participant
• A countdown timer
• A sponsor logo
• A secondary data source

Each visual element can be resized, positioned, cropped, transitioned, or layered according to the show design.

Picture-in-Picture and Multi-Window Compositions

Picture-in-picture layouts are useful for conferences, panel discussions, remote presentations, livestreams, and hybrid events.

Rather than switching exclusively between a presenter and a slide deck, the E2 Gen 2 can display both at the same time. Additional windows can be added for remote speakers, video playback, data dashboards, or branded graphics.

Our production team can program these looks before the event and store them as presets. During the show, the operator can recall the required composition without rebuilding the screen layout from scratch.

Smooth Transitions Between Looks

Professional productions often require more than abrupt source cuts.

The Barco E2 Gen 2 supports independent layer transitions as well as complete Preview-to-Program transitions. This allows show operators to create smooth visual changes between presentation layouts.

For example, the system can transition from a full-screen presentation to a layout featuring the presenter, slides, and event branding. It can then move to a video playback look before returning to the main presentation.

These transitions help the production feel intentional and polished rather than improvised.

Preview, Program, and Multiviewer Monitoring

A video operator needs to know what the audience is seeing—and what will appear next.

The Barco E2 Gen 2 supports Preview and Program workflows, allowing content and screen layouts to be prepared before they are sent live. This is essential for reducing visible mistakes during high-profile presentations.

The system also includes flexible Multiviewer capabilities. A Multiviewer can display source thumbnails, output destinations, Preview, Program, and auxiliary feeds on one or more operator monitors.

Barco’s 4K Multiviewer is designed to provide a broad overview of inputs and outputs throughout the system, improving situational awareness during complex productions. Multiviewer Monitoring Matters

Without effective monitoring, an operator may need several separate displays just to confirm that every source is available.

A properly configured Multiviewer creates a centralized visual workspace. The operator can check whether presentation laptops are active, cameras are correctly framed, playback systems are cued, and destination screens are receiving the intended content.

For large shows, this visibility can make the difference between controlled operation and frantic troubleshooting.

Barco E2 Gen 2 for LED Wall Productions

LED walls can involve resolutions and aspect ratios that do not match conventional television formats.

A wide LED wall may use a custom pixel canvas that stretches far beyond 16:9. Some stage designs also combine a primary LED wall with side screens, scenic LED columns, confidence displays, or additional digital surfaces.

The Barco E2 Gen 2 can help manage content across these destinations.

Our team can use the processor to create the required output structure, scale source content, position visual elements, and route different feeds to different screens.

Managing Ultrawide LED Canvases

An ultrawide LED display may require several outputs working together to create one continuous visual surface.

The E2 Gen 2 can support tiled screen configurations and large pixel canvases. Its outputs can be configured for single displays or combined widescreen destinations, depending on the show design and equipment configuration.

This makes it possible to distribute a large composition across multiple LED processor inputs while maintaining alignment across the overall canvas.

Separate Content for Multiple LED Surfaces

Not every LED screen needs to show the same content.

A production may require the center wall to display presentation material while side screens show live cameras. Scenic LED elements might display branded motion graphics, and confidence displays may require a completely different feed.

The Barco E2 Gen 2 allows these destinations to be managed within the same screen-management environment, simplifying the operator workflow.

Barco E2 Gen 2 for Multi-Projector and Blended Projection

Projection blending is another area where high-quality screen processing is essential.

When several projectors are used to create one wide image, the content must be divided and aligned across the projection surfaces. Brightness and overlap areas must also be carefully managed to prevent visible seams.

The E2 Gen 2 supports widescreen applications with independent edge-blending and feathering controls on all four sides of an output. es it suitable for:

• Panoramic projection
• Multi-projector conference stages
• Immersive presentation environments
• Projection mapping
• Museum and exhibition installations
• Large scenic backdrops
• Corporate general sessions
• Experiential brand events

Our team can coordinate the processor setup with projector alignment, screen geometry, content mapping, and media-server output requirements.

Integration with Livestreaming and Webcasting Systems

The Barco E2 Gen 2 can also play an important role in livestreaming and webcasting productions.

The processor is not a streaming encoder by itself. Instead, it can prepare and route polished video compositions to a dedicated streaming or recording system.

For example, an in-room audience may see a panoramic composition across a large LED wall, while the online audience receives a conventional 16:9 program feed.

The E2 Gen 2 can help create these separate destination layouts.

Creating a Dedicated Streaming Feed

A livestream feed may combine:

• Presentation slides
• Camera images
• Remote participants
• Event branding
• Video playback
• Sponsor content
• Lower-thirds
• Holding graphics

By creating a dedicated output for the streaming system, the production can provide online viewers with a layout designed specifically for their screens.

This is often more effective than simply sending the same ultrawide image displayed on the stage.

Supporting Hybrid Event Workflows

Hybrid productions connect in-person presentation systems with remote speakers, video conferencing platforms, streaming encoders, playback systems, and venue displays.

The E2 Gen 2 provides a central environment for organizing and distributing these visual sources. When paired with appropriate audio, communication, streaming, and camera systems, it can become a major component of the hybrid event workflow.

Reliable Hardware for Live Event Production

Live events leave very little room for equipment failure.

The E2 Gen 2 is housed in a rugged steel chassis designed for professional touring and production use. The processor occupies four rack units and includes dual-redundant, hot-swappable power supplies. Its input, output, and processing cards are also designed for field serviceability, although the cards themselves are not hot-swappable. atures are important in rental and production environments where equipment may be transported, installed, operated, removed, and redeployed regularly.

Redundant Power Architecture

A redundant power configuration helps reduce the risk associated with a single power-supply failure.

When the production design requires additional resilience, our team can also evaluate upstream power distribution, uninterruptible power supplies, backup signal paths, spare sources, and secondary processing strategies.

No single piece of equipment should be considered the entire backup plan. Reliability comes from designing the complete system intelligently.

Expandable Processing for Large Productions

Some productions exceed the capacity of a single video processor.

The Barco E2 Gen 2 can be linked with additional compatible Event Master chassis to increase input, output, and processing resources. According to Barco, the platform can support linked systems containing as many as eight chassis in suitable configurations. andability makes the platform useful for large events involving:

• Multiple independent stages
• Extremely wide LED canvases
• Numerous display destinations
• High source counts
• Complex projection systems
• Large exhibition environments
• Multi-room presentation systems

Linking systems can also reduce the need to build a fragmented workflow from several unrelated processors and external routing devices.

Event Master Control and Show Programming

The E2 Gen 2 is operated through Barco’s Event Master control environment, compatible controllers, and web-based control options.

The software provides access to input configuration, destination setup, layer assignment, presets, transitions, routing, and Multiviewer design.

Presets are stored on the chassis, which supports reliable show operation and integration with approved third-party control systems. Multiple users may also control the system simultaneously, which can be useful during programming, rehearsal, and live operation. Programming Before the Event

Whenever possible, we prepare the show configuration before arriving on site.

Pre-programming may include:

• Naming and organizing inputs
• Creating screen destinations
• Building output formats
• Designing Multiviewer layouts
• Assigning layers
• Programming presentation looks
• Creating Preview and Program transitions
• Building emergency and holding presets
• Testing custom resolutions
• Documenting signal paths

Pre-production work reduces setup time and gives the technical team more opportunity to identify potential conflicts before the live event.

Ideal Applications for Barco E2 Gen 2 Rental

The Barco E2 Gen 2 is particularly well suited to productions where several visual systems must work together.

Common applications include:

Corporate Meetings and General Sessions

Use multiple presentation sources, live cameras, playback systems, branding, and confidence monitors within one coordinated workflow.

Conferences and Conventions

Manage keynote presentations, panel discussions, remote speakers, breakout feeds, sponsor content, and multiple display destinations.

Product Launches

Combine high-resolution product visuals, cinematic playback, live demonstrations, cameras, and dramatic screen transitions.

LED Wall Events

Process custom-resolution content for large LED canvases, scenic LED elements, side screens, and supporting displays.

Projection Mapping and Immersive Experiences

Distribute and align content across several projectors or unconventional visual surfaces.

Livestreams and Hybrid Events

Create dedicated visual compositions for in-room displays, livestream encoders, recording systems, and remote participants.

Trade Shows and Exhibitions

Manage presentation content across booth displays, LED walls, demo stations, and branded digital environments.

Awards Shows and Entertainment Productions

Build dynamic screen looks incorporating cameras, nominees, playback, graphics, sponsor content, and scenic visuals.

Rent the Barco E2 Gen 2 for Your Next Event

The Barco E2 Gen 2 Configuration Switcher is an excellent choice for productions that require reliable high-resolution processing, multiple screen destinations, sophisticated layering, flexible source management, and professional show control.

From a single presentation screen to a complex multi-display environment, the E2 Gen 2 can provide the processing foundation needed to keep content organized and the production running smoothly.

Contact our AV rental and production team with your event specifications. We will review your screen layout, source requirements, output destinations, schedule, and operational needs to develop a Barco E2 Gen 2 rental package designed around your production.
